Xamarin Android Compound Control - Styling

Last time around I showed how to create a Xamarin Android compound TextInputLayout control with support for capturing user input with an associate Header and Error labels. This post looks at how to style the same control in Android.

Style attributes

As mentioned previously, I want all my compound controls to support a common set of attributes to create a consistent look-and-feel. Every control will have a Header (i.e. description), Text (i.e. value) and Error properties. To style these attributes, we create three associated attributes in our Resources/values/attrs.xml file to assign the styles to:

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <attr name="ItcTextAppearanceLabel" format="reference"/>
    <attr name="ItcTextAppearanceText" format="reference"/>
    <attr name="ItcTextAppearanceError" format="reference"/>

In addition to these attributes we also associate these new style attributes with our existing ITTextInputLayout definition in the attrs.xml:

<declare-styleable name="ITTextInputLayout" >
    <attr name="android:inputType"/>
    <attr name="android:maxLines"/>
    <attr name="android:text"/>
    <attr name="android:imeOptions"/>
    <attr name="ItcLabel"/>
    <attr name="ItcError"/>
    <attr name="ItcTextAppearanceLabel"/>
    <attr name="ItcTextAppearanceError"/>
</declare-styleable>

Notice that we don’t include the ItcTextAppearanceText reference style in the definition. The reason being that we will re-use the already defined style attribute on the android.support.design.widget.TextInputLayout that our ITTextInputLayout control inherits from.

To define the default, global look-and-feel for all our controls, we also create a styles container in the attrs.xml:

<declare-styleable name="ITControls" >
    <attr name="ItcTextAppearanceLabel"/>
    <attr name="ItcTextAppearanceError"/>
    <attr name="ItcTextAppearanceText"/>
    <attr name="ItcTextInputLayoutStyle" format="reference"/>
</declare-styleable>

Widget and TextAppearance styles

With the attributes defined, we can now define a style for our compound control in the Resources/values/styles.xml file. As our control extends the android.support.design.widget.TextInputLayout control, it is important to first consider what style attributes is already being used so that we can associate our own styles with the existing styles. From the existing Android styles definition we see that Android widget has the following styles definition:

<style name="Widget.Design.TextInputLayout" parent="android:Widget">
  <item name="hintTextAppearance">@style/TextAppearance.Design.Hint</item>
  <item name="errorTextAppearance">@style/TextAppearance.Design.Error</item>
  <item name="counterTextAppearance">@style/TextAppearance.Design.Counter</item>
  <item name="counterOverflowTextAppearance">@style/TextAppearance.Design.Counter.Overflow</item>
  <item name="passwordToggleDrawable">@drawable/design_password_eye</item>
  <item name="passwordToggleTint">@color/design_tint_password_toggle</item>
  <item name="passwordToggleContentDescription">@string/password_toggle_content_description</item>
</style>

The hintTextAppearance and errorTextAppearance is being used by the Android widget to style the label and error text. With this in mind, we can now create a style definition for our own control:

<style name="Widget.InTouch.TextInputLayout" parent="Widget.Design.TextInputLayout">
  <item name="android:textColorHint">@color/accentColor</item>
  <item name="hintTextAppearance">?attr/ItcTextAppearanceLabel</item>
  <item name="errorTextAppearance">?attr/ItcTextAppearanceError</item>
</style>

We override the default style styles and associate them with our new common-look-and-feel style attributes that we have defined. With our control style defined, we also create the default text appearance styles to use for our common-look-and-feel:

<style name="TextAppearance.InTouch" parent="TextAppearance.AppCompat">
</style>

<style name="TextAppearance.InTouch.Label">
  <item name="android:textSize">14sp</item>
</style>

<style name="TextAppearance.InTouch.Label.Error">
  <item name="android:textSize">12sp</item>
  <item name="android:textColor">@color/errorColor</item>
</style>

Themes

With the styles defined, we now set out to create a default Theme where we assign the default styles to the style attributes we created to create our common look-and-feel. Themes are created in a Resources/values/themes.xml file:

<?xml version="1.0" encoding="utf-8" ?>
<resources>
  <style name="Theme.InTouch" parent="Theme.InTouch.Base">
  </style>

  <style name="Theme.InTouch.Base" parent="Theme.Design.Light.NoActionBar">

    <item name="colorPrimary">@color/primaryColor</item>
    <item name="colorPrimaryDark">@color/primaryColorDark</item>
    <item name="colorAccent">@color/accentColor</item>

	<!-- Composites -->
    <item name="ItcTextAppearanceLabel">@style/TextAppearance.InTouch.Label</item>
    <item name="ItcTextAppearanceError">@style/TextAppearance.InTouch.Label.Error</item>
    <item name="ItcTextInputLayoutStyle">@style/Widget.InTouch.TextInputLayout</item>
  </style>

Notice that our theme associates the default text appearance with a specific style. With the theme definition in place, we can now use it our applications in Xamarin by typically assigning the Theme property as an attribute on our startup Activity or on the Application instance as illustrated below:

[Application(Name = "phil.AndroidApp", Theme = "@style/Theme.InTouch")]
public class AndroidApp : Application, Application.IActivityLifecycleCallbacks
{

Control changes

With the style attributes and themes defined, we still need to enhance our control to make use of the styles defined. To cater for the styles and themes we need to change our existing control to get the style definitions and use them for changing the look-and-feel of its internal widgets:

The three different constructors cater for different scenarios of creating our compound control. The first constructor on Line 3 is typically used when I create a control programmatically. The second constructor on Line 7 is called when I define my control in a layout without specifying a style.

<intouch.controls.ITTextInputLayout
    android:id="@+id/layout_username"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:imeOptions="actionNext" ...

The third constructor is called when I define my control in a layout with specifying a style:

<intouch.controls.ITTextInputLayout
    style="@style/MyCustom.Style"
    android:id="@+id/layout_username"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:imeOptions="actionNext" ...

Notice how the constructors call into each other and the use of the Resource.Styleable.ITControls_ItcTextInputLayoutStyle style attribute on Line 7 that will use the style setup in our theme as the default if the user does not specify their own style for our control in a layout. Our theme is setup to use @style/Widget.InTouch.TextInputLayout as style which makes use of the default look-and-feel style attributes to style the control.

As we are re-using the existing styles defined on the Android TextInputLayout control, we simply have to call into the base class constructor to get these styles applied to the Error and Hint widgets. Feel free to browse the TextInputLayout.java source code if you want to see how this is done.

Summary

Styles and Themes in Android along with style inheritance is a really powerful tool for creating a common look-and-feel across your application. I hope this post highlighted some ways in which you can make use of this powerful functionality to create a common look-and-feel for your own compound controls.

Xamarin Android Compound TextInputLayout Control

I’ve been going through some Android layouts try and remove some duplication by creating re-usable custom component controls. I’m pretty happy with how things are turning out and thought I’d share one or two of the controls. I will show how these controls can be used in vanilla Xamarin Android as well as in my favourite MVVM framework, MvvmCross.

Shared attributes

I want all my compound controls to support a common set of attributes to create a consistent look-and-feel. Every control will have a Header (i.e. description), Text (i.e. value) and Error properties. For this I define a IITComposite interface.

All my custom compound controls will implement this interface.

Custom TextInputLayout Control

The first compound control will be used to capture text input from the user. Most of the functionality is already provided out-of-the-box via the TextInputLayout and TextInputEditText views of the Android.Support.Design library.

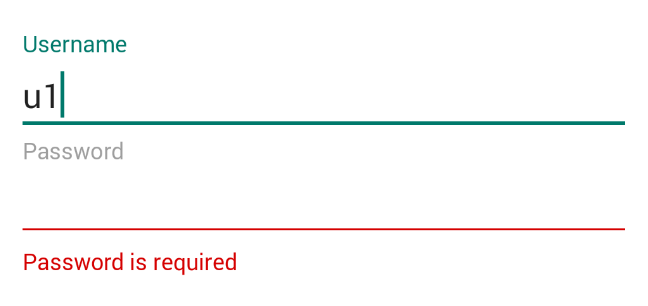

Here’s a screen shot of of these controls in action in one of my apps:

Here’s the corresponding layout for the password field:

People familiar with MvvmCross will understand the binding syntax being used by the app:MvxLang and app:MvxBind attributes. The binding is what makes a MVVM framework so powerful and I’m not going to delve into the details here. From the binding syntax we can see that the Hint, Text and Error properties of the views map nicely to the features required by my IITComposite interface. It therefore makes sense for my compound view to re-use by inheriting and extending the existing TextInputLayout control.

Control Layout

We start by defining the layout for the compound control that will be inflated in code within a Resources\layout\control_textinput.axml file:

As the compound control inherits from TextInputLayout, the merge tag is being used instead of the android.support.design.widget.TextInputLayout tag to prevent an extra instance of the control being inflated when my custom component control is included in a layout.

Control Layout Attributes

To define the set of attributes that can be set for a control in layout, you have to create a Resources\values\attrs.xml file and include a definition for your control and its supported attributes within it.

Notice that the ITTextInputLayout adds support for its own ItcHeader and ItcError attributes, but for the rest makes use of the default Android attributes already associated with TextInput controls.

Given the above attributes definition, the layout for the same password field using the ITTextInputLayout control can be simplified to:

Notice that the control now supports the IITComposite interface through the Header,Text and Error properties. Again, the code snippet illustrates these properties being set using the binding functionality of MvvmCross. I can however also set them manually as shown by using the app:ItcHeader attribute to set the Header property in the following snippet:

Control Properties

With these attributes defined, we can now populate the properties for our control from the layout definition (lines 8-27):

We first inflate our control and then assign the attribute values from the layout to the public properties of the control. These properties are mapped to the internally inflated controls to drive the behavior of the compound control.

Control Events

To allow external consumers to be notified of the text being entered, we add a TextChanged event to the compound control.

We hook/unhook the Control.AfterTextChanged event via the OnAttachedToWindow and OnDetachFromWindow methods and raise our own TextChanged event whenever we get notified by the internal TextEditInputView.

In a follow up post I will show how easy it is to create a custom MvvmCross binding for the ITTextInputLayout.TextChanged event to automatically bind the changes to a data context.

Summary

That’s about it for now. You can find a gist for the complete code of the ITTextInputLayout control here. I also highly recommend reading through the transcript of this talk by Daniel Lew on how to create efficient Android layouts.
